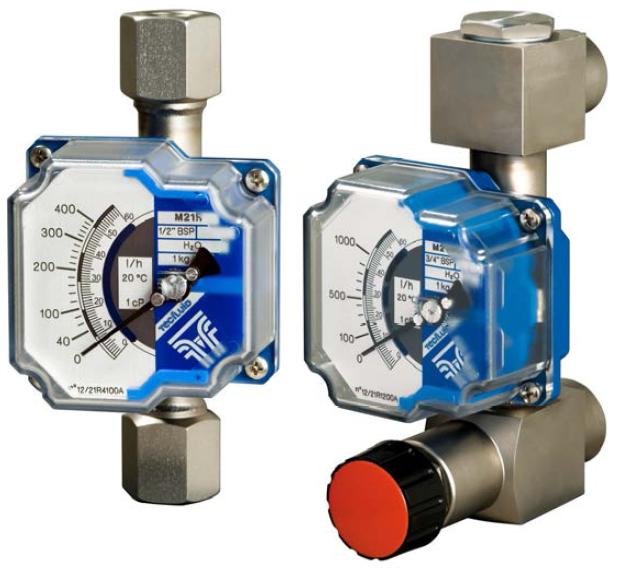

M-21 Armoured Purge Meter

Applications:	For low flows in liquids, gases and steam. Indication by magnetic coupling. Cost effective replacement for glass tube meters.
Flow Range:	0.1 l/h to 1 000 l/h (Water) 4 Nl/h to 30 Nm3/h (Air)
Accuracy:	±4%
Connection:	1/4″ to 3/4″ NPT, BSP, Clamp, Naue
Scale:	10:1
Materials:	SS-316L (Standard), PTFE
Temperature:	-20ºC to +200ºC
Pressure:	16 to 400 bar
Alarms:	Inductive proximity switch
Transmitter:	4-20mA
