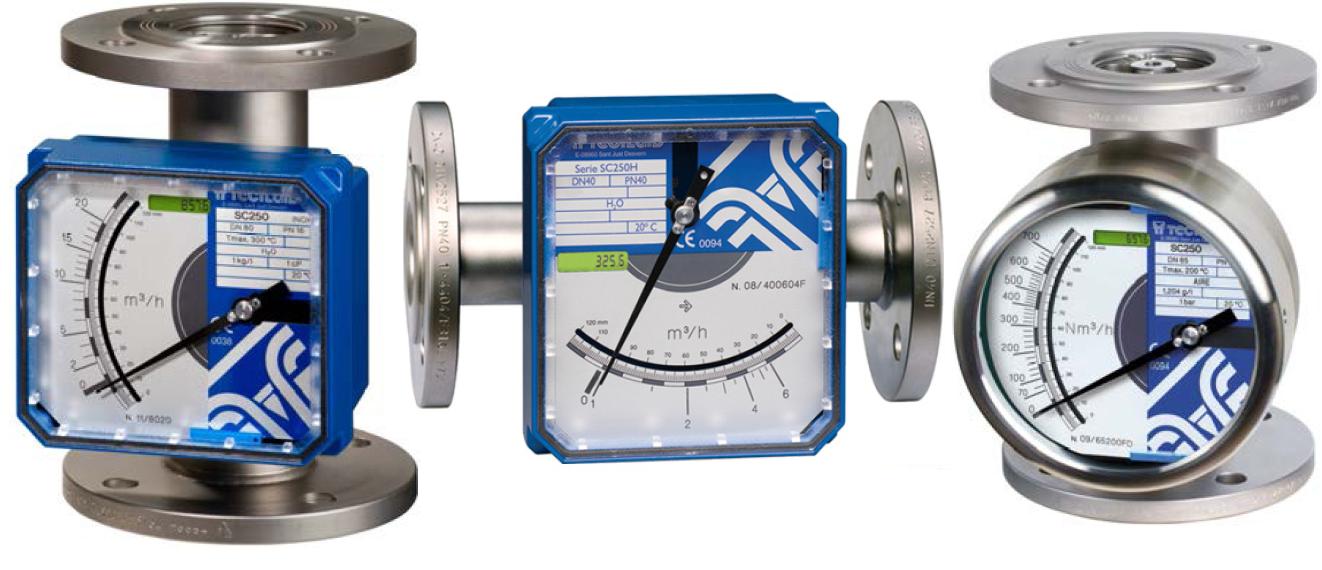

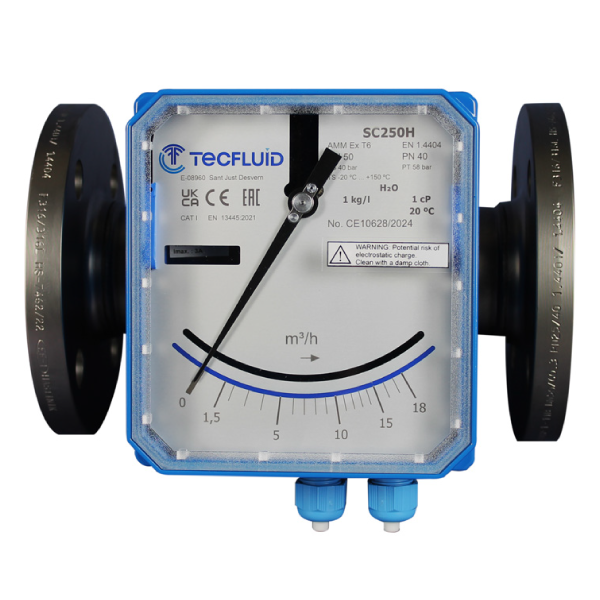

SC-250 : Armoured Flow Meter

Applications:	For liquids, gases and steam. Indication by magnetic coupling.
Flow Range:	2.5 l/h to 180 m3/h (Water) 70 Nl/h to 5 400 Nm3/h (Air)
Accuracy:	±2.5%
Connection:	DN15 to DN150 DIN Flanges, Others on request
Scale:	10:1
Materials:	SS-316L, PVC, PTFE, Hastelloy
Temperature:	-160ºC to +400ºC
Pressure:	16 to 400 bar
Alarms:	Magnetic actuated micro switch, Inductive proximity switch
Transmitter:	4-20mA, 4-20mA + totaliser, 4-20mA (EEx ia IIC T4), 4-20mA (EEx ia IIC T6), 3-15 psi
