| Applications: |

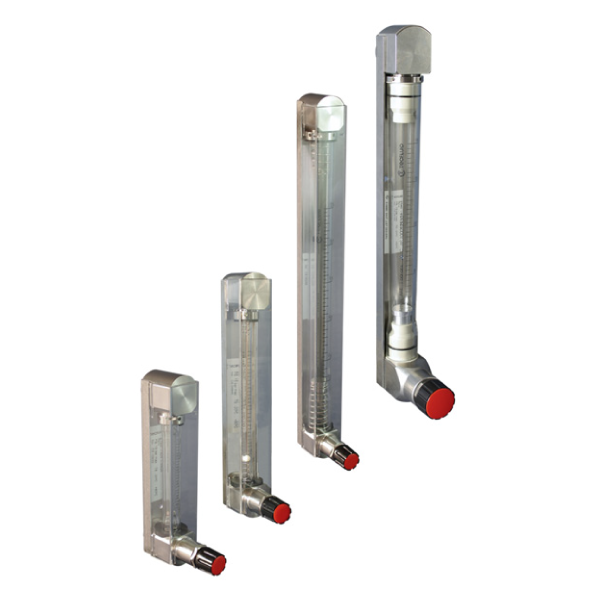

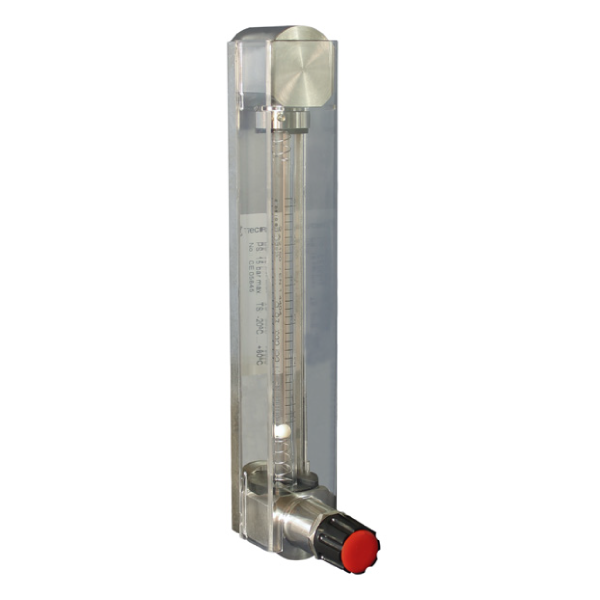

Low flow meter for liquids and gases. Available with or without needle valve. |
| Flow Range: |
0.1 l/h to 1 000 l/h (water) |
| Accuracy: |
±4% FS (2100), ±2.5% FS (2150), ±1.6% FS (2300) |
| Connection: |
1/4″ to 3/4″ BSP, NPT |
| Length: |
165 to 390 mm |
| Materials: |
| Metering Tube: |
Borosilicate Glass |
| Connectors: |
SS-316L, PVC or PTFE |
| Float: |
SS-316L, glass, ceramics |
|
| Scale: |
10:1 |
| Pressure: |
5 to 15 bar |
| Temperature: |
-10ºC to +120ºC |
| Alarms: |
Inductive proximity switch, Optical position detector, Hall effect position detector |
| Constant Flow: |
Constant flow regulator for inlet or outlet pressure variation |
|
