| Applications: |
For liquids and gases. Generally for low to medium pressure applications. |
| Flow Range: |
1 l/h to 40 m3/h (water) |
| Accuracy: |
±1.6% FS |
| Connection: |
| 6001: |

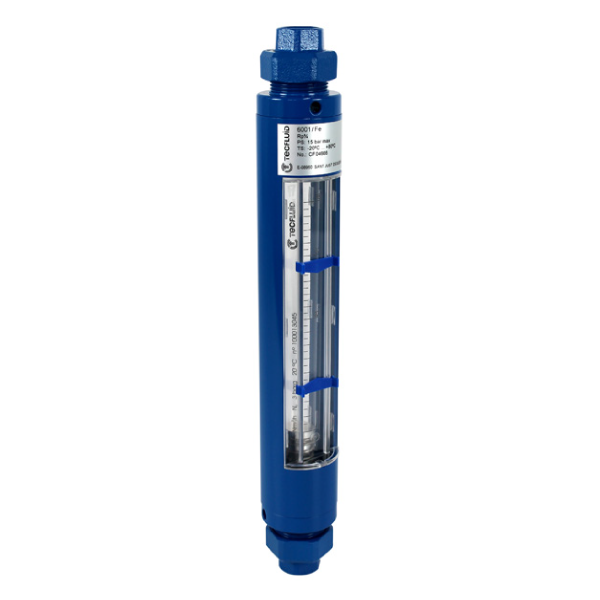

1/2″ to 3″ BSP |
| 6002: |

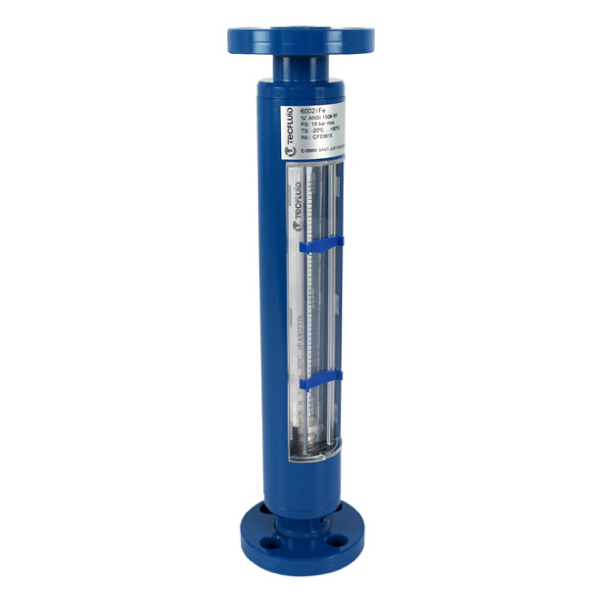

DN15 to DN80 DIN flanges |
|
| Length: |
380 to 510 mm |
| Materials: |
| Metering Tube: |
Borosilicate Glass |
| Connectors: |
Steel, SS-316L, PVC or PTFE |
| Float: |
SS-316L, PVC, PVDF or PTFE |
|
| Scale: |
10:1 |
| Pressure: |
5 to 15 bar |
| Temperature: |
-10ºC to +100ºC |
| Alarms: |
Magnetic actuated micro switch, Inductive proximity switch, Optical position detector, Reed switch, Hall effect position detector |
| Transmitter: |
0…4-20mA (15 point resolution) |
|
